CNC Hydraulic Orbital Automatic Riveting Machine

CNC Hydraulic Orbital Automatic Riveting Machine is the CNC Automatic orbital riveting equipment, which driven by hydraulic. This CNC Hydraulic Orbital Automatic Riveting Machine performs riveting semi-automatically or fully automatically, it is a customized riveting assembly solution.

CNC Hydraulic Orbital Automatic Riveting Machine

CNC Hydraulic Orbital Automatic Riveting Machine is the CNC Automatic orbital riveting equipment, which driven by hydraulic. This CNC Hydraulic Orbital Automatic Riveting Machine performs riveting semi-automatically or fully automatically, it is a customized riveting assembly solution. It adopts the advanced of orbital technology-advanced cold rolling technology. It is applicable to the so many industrial, such as automobile industry, electrical industry, daily use goods industry.

Generally, it will perform an automatic riveting operation by adopts the following items,

  1. CNC control X-Y Axis Movement.
  2. Indexing Plate with multi workstations.
  3. Vibratory Bowl Feeder.
  4. Manipulator, or called as the industrial robot.

It is a fully customized riveting machine according to customers requirement. RIVETMACH have the ability to meet different riveting operation requirements for highly productive and saving labor cost.

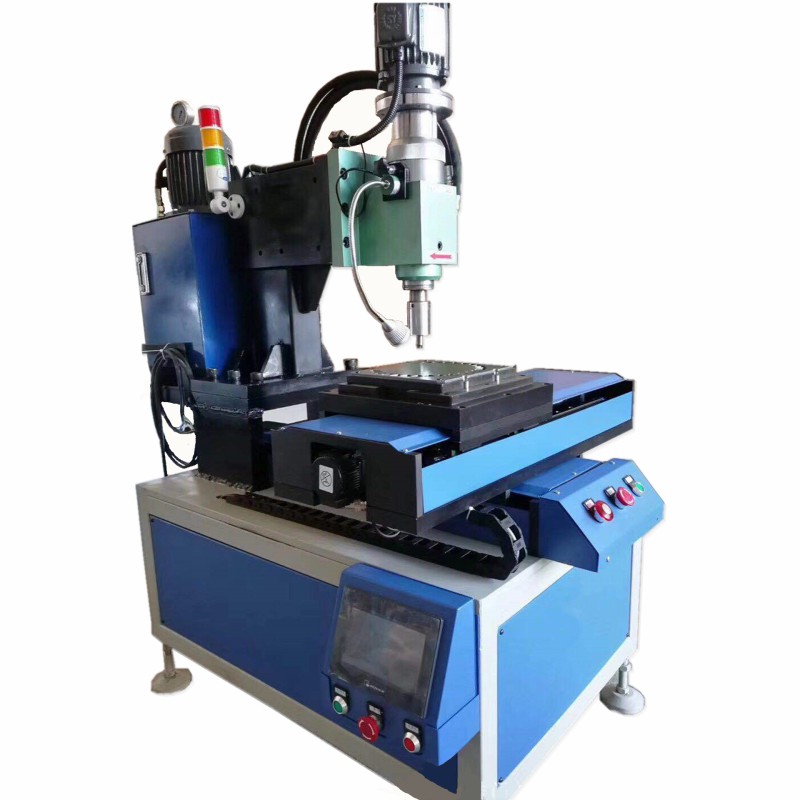

CNC X-Y Axis Automatic Riveting Machine

Main Items: CNC control X-Y Axis Movement.
Applications: Suitable for riveting several points on one part. Such as Engine cylinder cover of automobiles.
Functions:

  1. Manual loading parts
  2. Automatic movement control by CNC X-Y axis
  3. Automatic riveting several riveting points



Muti Workstations Indexing Plate Automatic Riveting Machine

Main Items:

  1. Indexing Plate with multi workstations.
  2. Manipulator, or called as the industrial robot.

Applications: Suitable for riveting one point on the small parts. Such as Automobile parts, electrical parts.
Functions:

  1. Manual loading parts
  2. Automatic feeding rivets
  3. Automatic riveting process

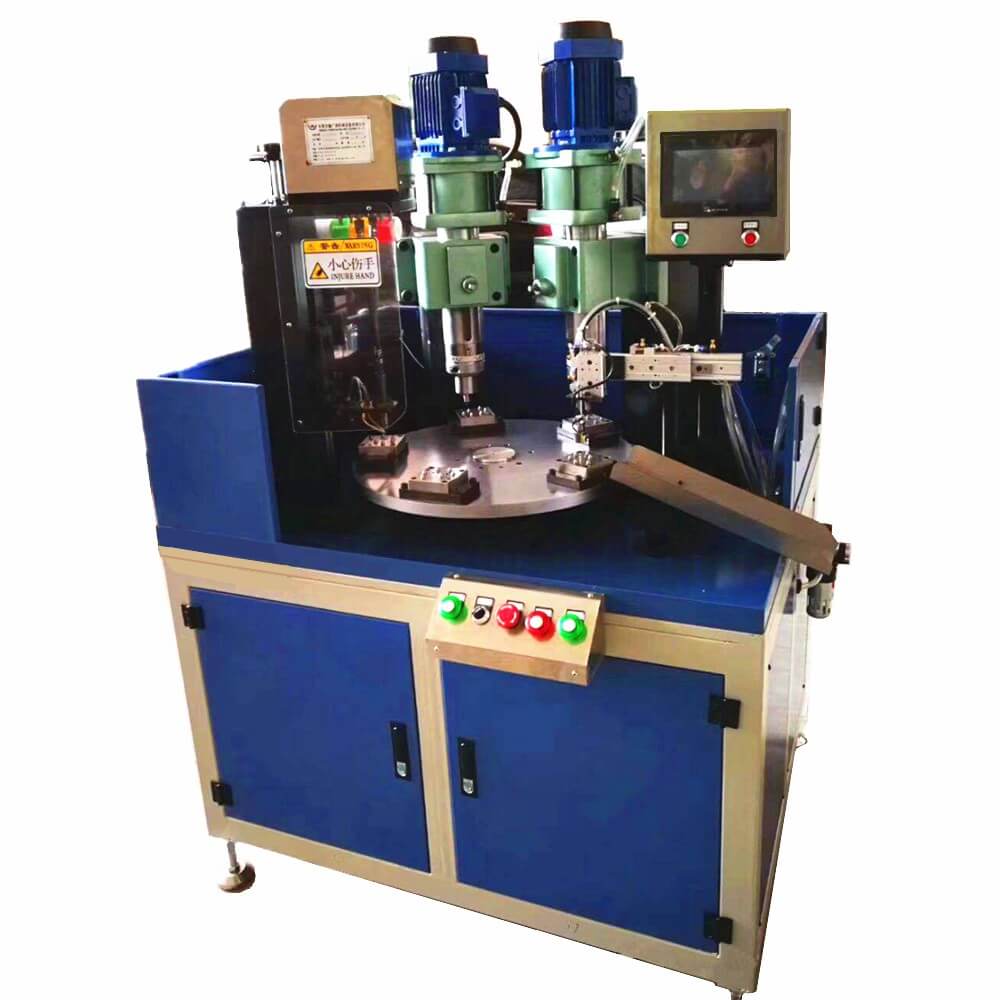

  4. Automatic unload partsIndexing Plate Hydraulic Orbital Riveting Machine


Vibratory Bowl Feeder Automatic Riveting Machine, Indexing Plate, Manipulator

Main Items:

  1. Indexing Plate with multi workstations.
  2. Vibratory Bowl Feeder.
  3. Manipulator, or called as the industrial robot.

Applications: Suitable for riveting one point on the small parts. Such as Automobile parts, electrical parts.
Functions:

  1. Automatic loading parts
  2. Automatic feeding rivets
  3. Automatic riveting process
  4. Automatic unload parts

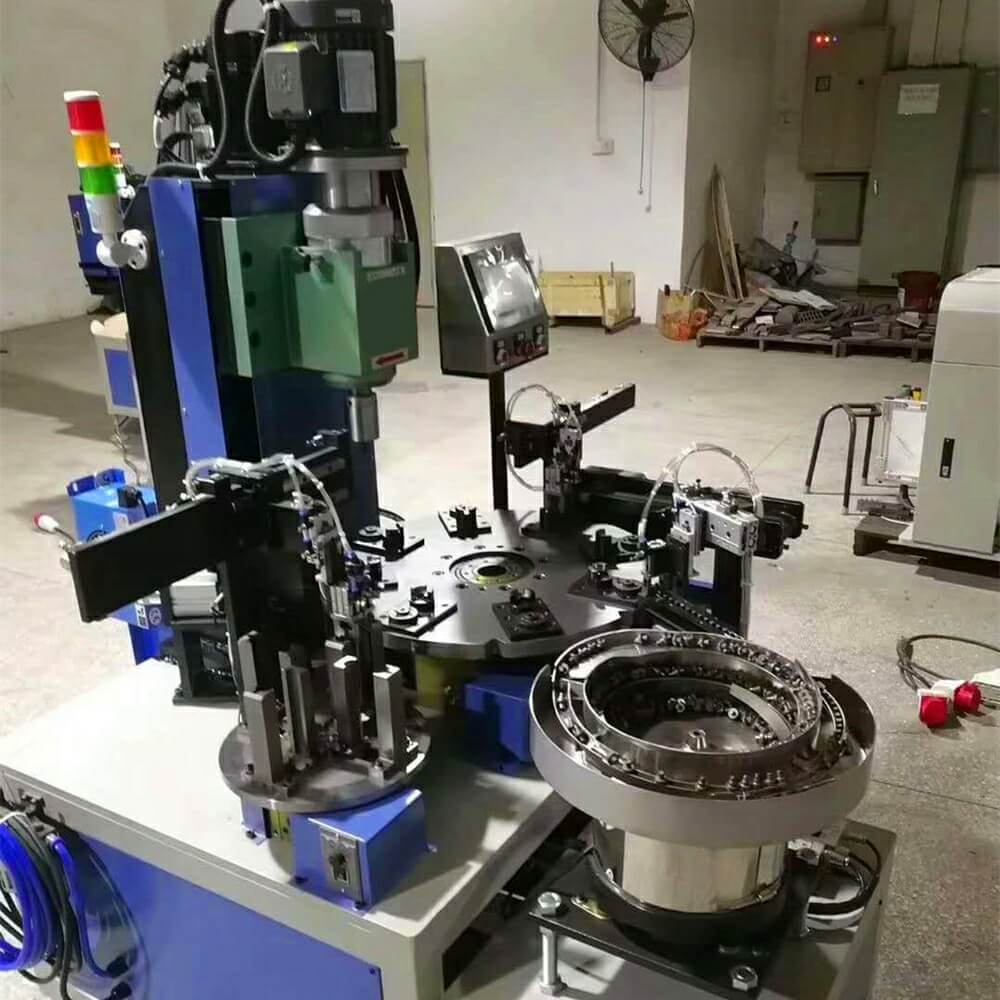

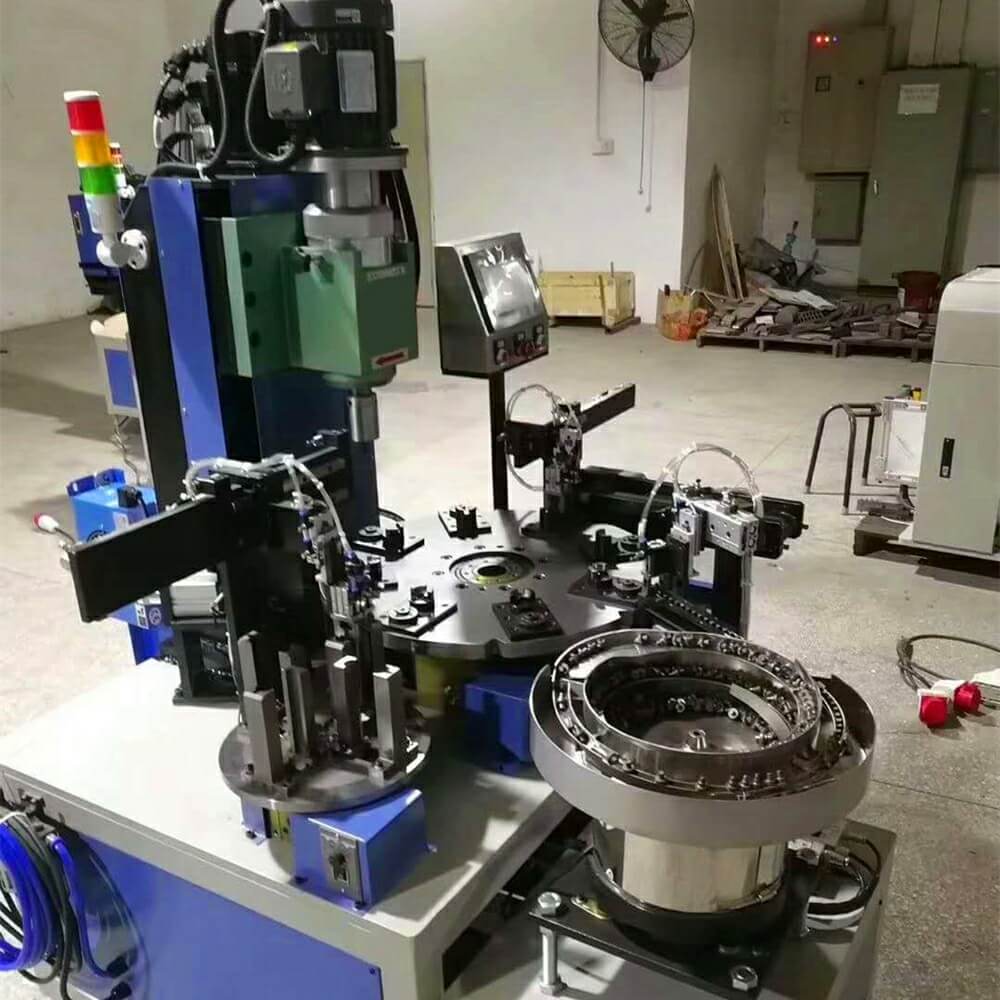

Automatic Orbital Riveting Machine with Vibratory Bowl Feeder, Indexing Plate



Applications of CNC Hydraulic Orbital Automatic Riveting Machine

 Brake pad riveting, vehicle production, caster wheel, truck door hinges, knife handle, etc.

Video of CNC Hydraulic Orbital Automatic Riveting Machine

Parameters of CNC Hydraulic Orbital Automatic Riveting Machine

  • CE Certificate:  YES
  • Control: Electrical
  • Rivets type: Solid rivets, Hollow rivets, Semi-tubular rivets
  • Driven power: Hydraulic driven or Pneumatic driven
  • Voltage: Customized 100V-240V 1 Phase/380V-415V 3 Phases 50/60 Hz
  • More details will be provided in customized riveting solutions.

Specifications of CNC Hydraulic Orbital Automatic Riveting Machine

CNC Hydraulic Orbital Automatic Riveting Machine is the latest forming and fastening process which instead of spinning, hammering, pressing, welding, upsetting, the riveting result is a very smooth surface on metal, it will increase much production and save power.

  • Increase much production and save labor cost. Rivet will be processed within 0.5-3 seconds.
  • Electric control units are equipped with digital display time relay and counter for easy operation.
  • The best quality of all units on this machine ensures the smooth surface of workpiece and stability of processing.
  • Acceptable for hollow rivets, semi-tubular rivets, solid rivets.
  • Easy operation. Workers operate the machine by stepping foot pedal.
  • Vertical Type, workbench designing, to make worker relax and comfortable.
  • Hydraulic driven.
  • Bearing: The use of best quality bearings, the wear-resistant degree of similar bearings 8-10 times
  • Mold adopts alloy steel KD11 material.
  • Take small area, easy maintenance, very easy to replace worn parts by workers.
  • High productive and economic price.
  • Safety devices for preventing human injury.
  • 24 months warranty for CNC Hydraulic Orbital Automatic Riveting Machine, 6 months for riveting tooling.
