Face Shield Automatic Button Fastener Machine

Face Shield Automatic Button Fastener Machine is an automatic feeding snap button attaching machine, which feeds plastic snap automatically.  Plastic snap button was very suitable for face shield, medical protective clothing, medical protective suit.

Face Shield Automatic Button Fastener Machine RM-S2F

Face Shield Automatic Button Fastener Machine is a fully-auto snap fastener tool, which used to attach the plastic snap button automatically. Do not need piercing at first, the machine will self-piercing APET double side anti-fog material automatically. Equipped with safety devices and positioning laser light. The maximum capacity could reach 1200pcs/hour splash protecting face shield.

Applications

RM-S2F is an automatic feeding snap button attaching machine, which feeds plastic snap automatically.  Plastic snap button is very suitable for face shield, medical protective clothing, medical protective suit, eco bag, baby clothing, stationery, pencil box, baby diapers, baby clothes, worker clothes, etc.

Video

Parameters of Face Shield Automatic Button Fastener Machine

  • CE Certificate: YES
  • Snap Type: Plastic Snap button, Plastic stud, Plastic sockets
  • Control: Automatic feeding snap fasteners
  • Max. Capacity: 1200 Pcs/Hour
  • Throat depth: 85mm
  • Driven power: Electric driven
  • Motor: 184W
  • Voltage: Customized 100V-240V 1 Phase/380V-415V 3 Phases 50/60 Hz
  • Dimensions: 600×420×1200 mm
  • Net Weight: 110 Kgs

Specifications

It is automatic feeding fasteners, which adopt vibrating bowl to select Plastic snap button and sends it to the processing position, the whole process is done automatically.

This machine is fully automatic driven, two actions need to be done by labors.

  1. Feed plastic snap stud/sockets and cap/post in two feeder, no need feed piece by piece manually,
  2. Step on feet pedal.

It will perform stable processing, low noise. Automatic snap attaching machine is the latest technology for setting plastic snap button on splash protective isolation mask, medical protective suit, baby clothing, eco bag, stationery.

  • Save labor cost. Automatic feeding plastic snap button for more efficient processing.
  • Easy operation. No need manually feed snap button piece by piece.
  • Safety devices for preventing human injury.
  • Raser light for positioning.
  • Molds adopt alloy steel KD11 material.
  • Take small area, easy maintenance, very easy to replace worn parts by workers.
  • Leading snap fastener machines manufacturer in China. The premium machine, factory direct price.
  • 24 months warranty for machines, 6 months for punchers and die set.

Fully Automatic Plastic Snap Fastener Machine

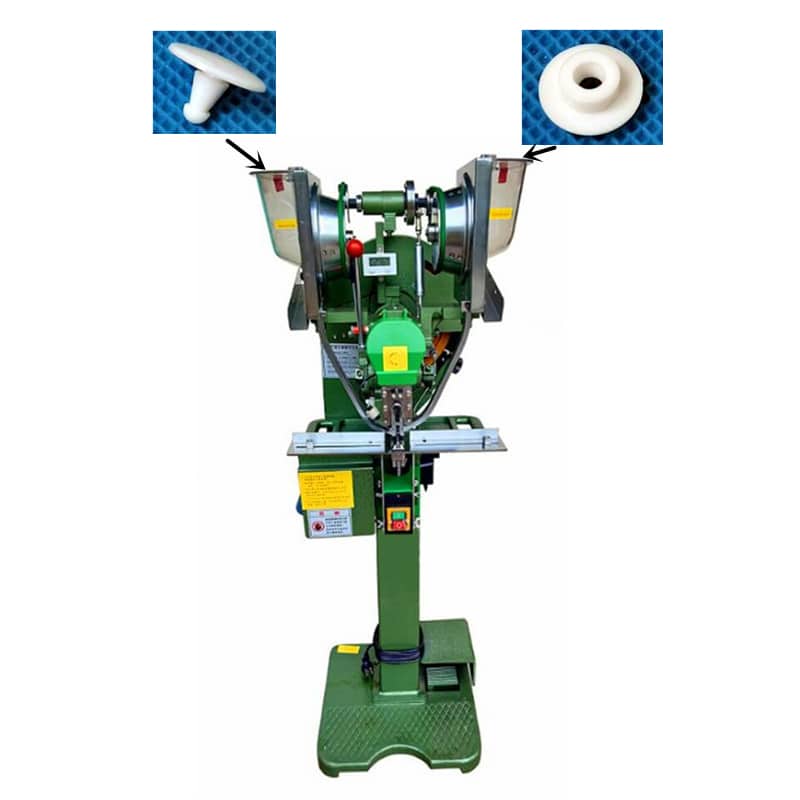

Anti Splash Face Mask Button Attaching Machine

Anti Splash Face Mask Button Attaching Machine

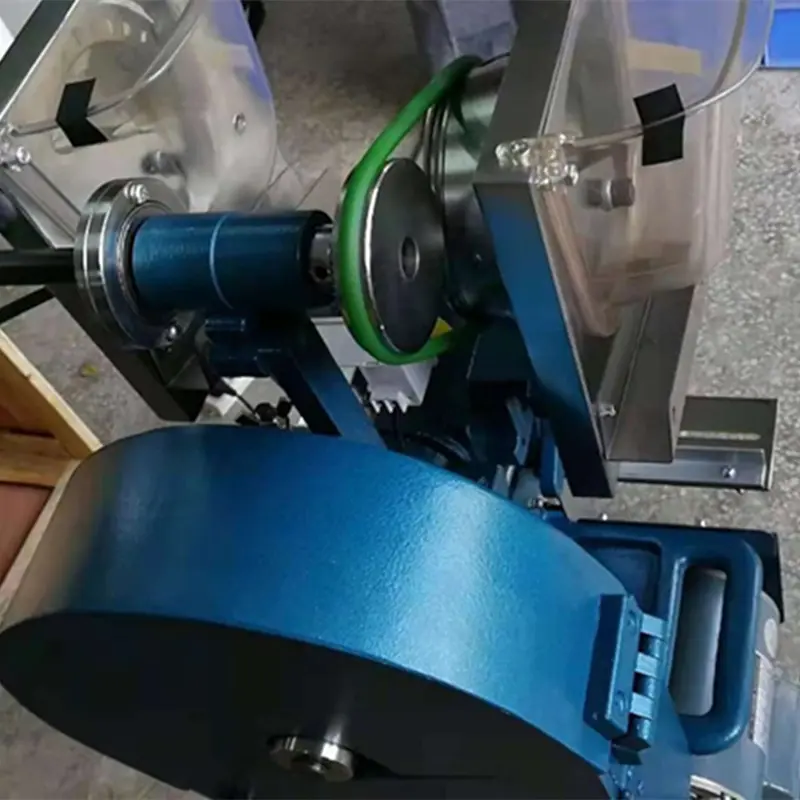

Automatic Snap Button Machine View

Automatic Snap Button Machine View

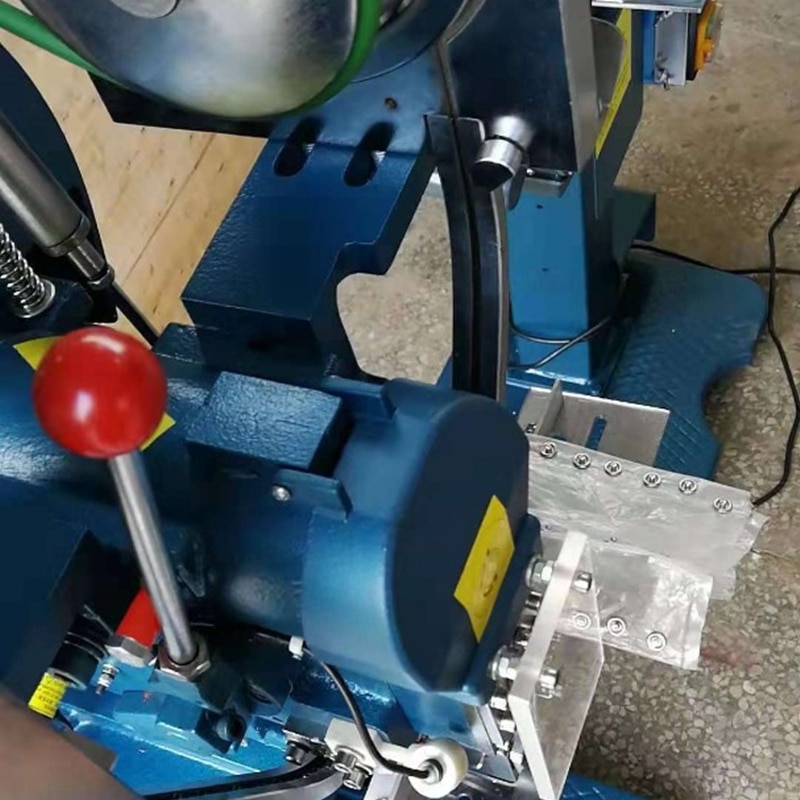

Automatic Snap Button Attaching Machine View

Automatic Snap Button Attaching Machine View

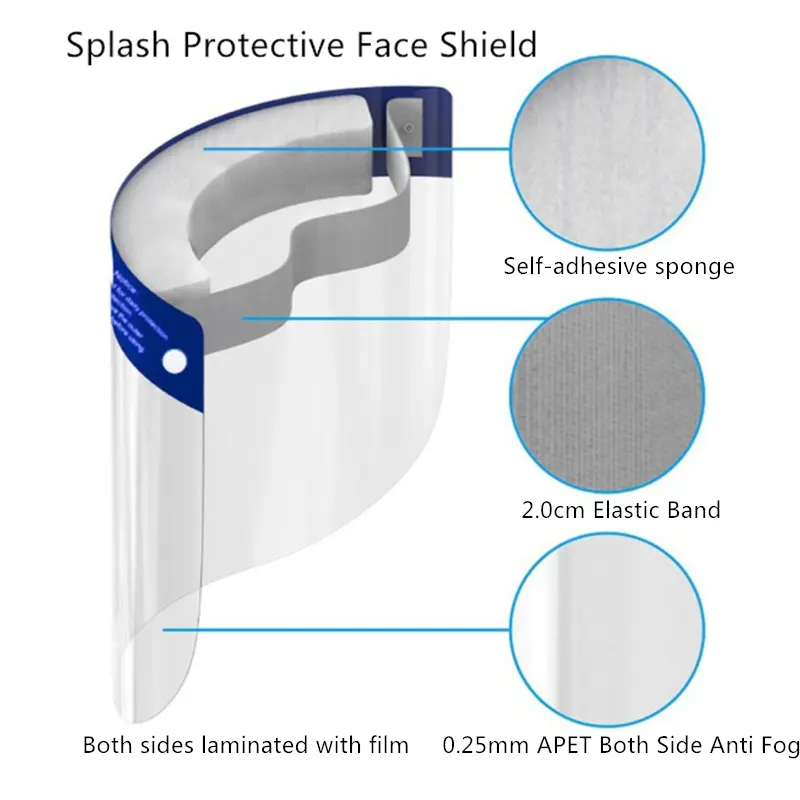

Splash Protective Face Shield

Splash Protective Face Shield

Splash Protective Face Shield Automatic Button Fastener Machine

Splash Protective Face Shield Automatic Button Fastener Machine

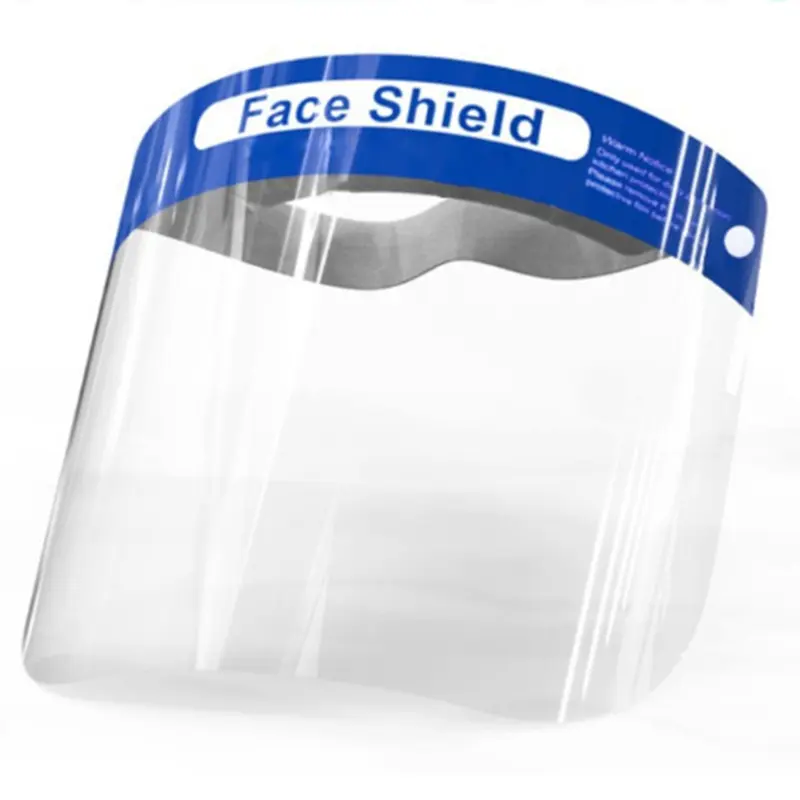

Face Shield

Face Shield

APET 0.25mm printed logo for face shield

APET 0.25mm printed logo for face shield

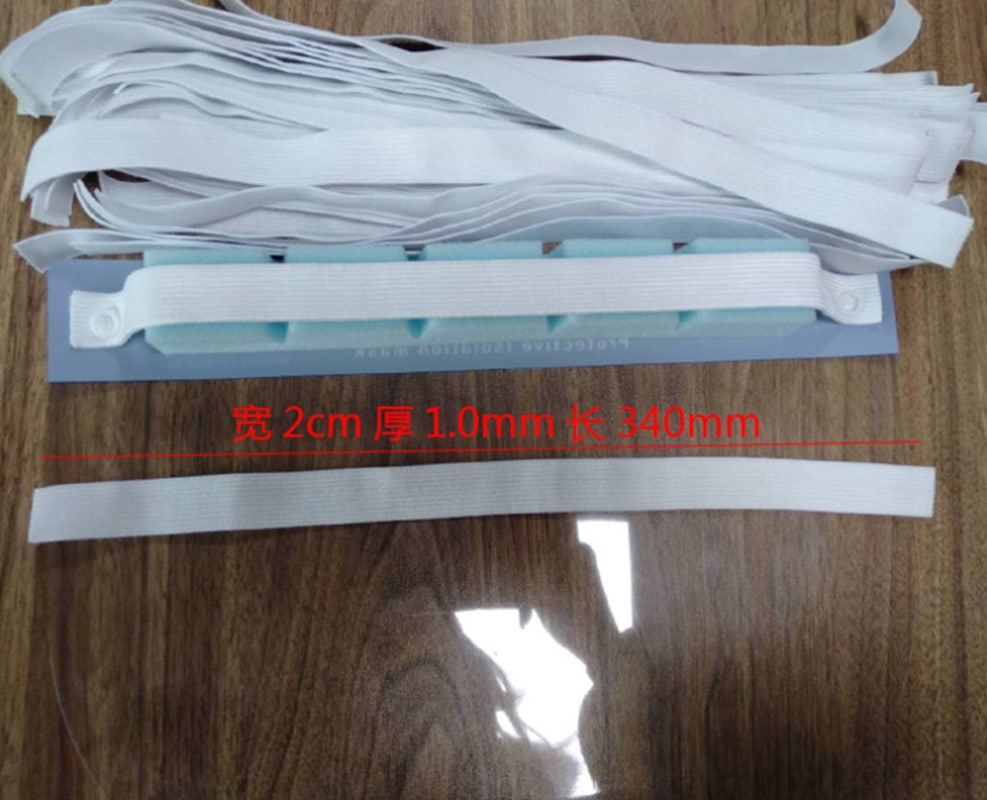

Face shield Elastic Band 2.0cm width

Face shield Elastic Band 2.0cm width

Splash Face Shield Mask

Splash Face Shield Mask
